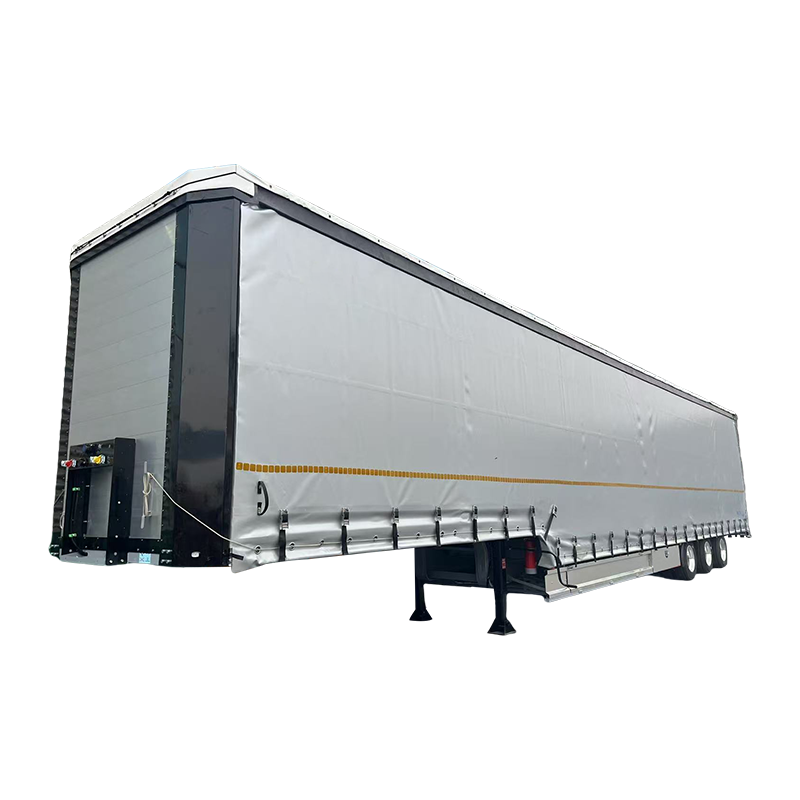

Side curtain semi-trailer

Light weight

Convenient and efficient handling

Extend vehicle life

Back to list
CONTACT US
pic
Overview

Customization services available with flexible specifications. We warmly welcome both new inquiries and repeat orders from valued clients.



Less self-weight. The curtain replaces the heavy box material, coupled with the internal structure of a large number of aluminum alloy materials, combined with air suspension technology, so that the side curtain car compared to the ordinary grid or van trailer, the weight can be reduced by 3-4 tons. This not only helps to reduce the energy consumption of the vehicle, but also enables higher cargo loading and improved transportation efficiency under the same load limit.

The loading and unloading process is extremely convenient and the efficiency is greatly improved. Since the top and both sides of the curtain car can be fully opened, multiple forklifts can be operated simultaneously during loading and unloading. Moreover, it is very suitable for the standard palletized transport mode, which can not only make full use of the compartment space, make the cargo layout more uniform and reasonable, but also distribute the load more evenly to each axle, effectively reduce the excessive wear of a certain part of the chassis due to uneven force, and extend the overall service life of the vehicle.

Parameters

Type

Box-type towing trailer

Kind

Semi-trailer

Loading weight

40,000 kg

Overall dimensions

13,000 * 2,550 * 3,900 mm

Saddle load capacity

15,000 kg

Saddle height

Universal

Number of tires

12

Front overhang radius

Standard (mm)

Payload

40,000 kg

Wheelbase

Universal (mm)

Maximum speed

90 km/h
